Products / Welding Accessories >>
INDUSTRIAL WELDING CABLES
Make –isi and as per is industrial welding cable like Keshav,sun
, Polyweld make.
Available in – copper ,aluminium conductor in trs(tough rubber
sheathed) , hofr (heat , oil, flame retardant )
from 16 sq.mm to 120 sq.mm i.e. 100 amps to 1200 amps. Amp trs
amps hofr
100 amps 16 sq.mm 150 amps 16
sq.mm
150 amps 25 sq mm 230 amps 25 sq.mm
230 amps 35 sq mm 400 amps 35 sq.mm
400 amps 50 sq.mm 600 amps 50 sq.mm
600 amps 70 sq.mm 800 amps 70 sq.mm
800 amps 95 sq mm 1000 amps 95 sq.mm
1000 amps 120 sq.mm 1200 amps 120 sq.mm
Apron – Chrome
Leather
.
Availability in 24 x 36 “, 24 x 48”
Used for – safety
purpose
Wire
Brush
Make - Maruti
used for cleaning rust and removing paints.
wire brush available in M.S and S.S (4 & 5 rows) circular wire
wheel available in different sizes in M.S and S.S
Cable
Lugs
Available in copper
finish & chrome plating, from 200 amps to 600 amps
Chipping
Hammer
Make Wel spring Universal
M.s without spring handle and powder coated body

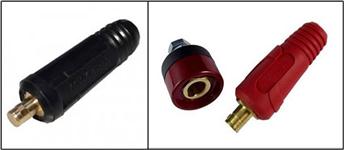

Cable
Connectors
Make Welspring universal
Used for joining the length of the cable
Available for cable side plug, machine panel socket, gas exit
connectors
From 200 amps to 600 amps cable
Welding
Curtain
(for protection against welding
spark)
Make - Welspring universal
Available in different size and types.
Drying
Ovens (electrode and flux drying ovens)
Make - Haridas
Used for drying the electrodes to get rid of the moisture in it
before used for welding.
Available from 4 kg drying capacity to 100 kg capacity, with
portable and mother ovens (cabinet type).
Flux drying ovens available from 50 kg flux drying capacity to 100
kg.
With one year warranty against manufacturing defect.
Earthing
Clamp
Make - Welspring universal
Used for earthing
Available from 200 amps to 600 amps, with full brass body,
available in brass pincer type and m.s heavy
Welding black and white glass
Used for welding Size (108 mm length x 83 mm width x 2 mm
height).
Available in shed no 11a1 din, 12a1 din, 13a1 din, 14 a1
din.
11a1 din used for general welding
12 a1 din used heavy structural welding
13 a1 din used for co2 welding
14 a1 din used for argon welding.
Glass (white plain).
Helmets
(Auto darkening)
Make Welspring universal Used for arc welding with variable glass
shed from 9 a1 din to 13 a1 din
Available in various viewing area sizes
Handgloves
Superior quality
Used for safety
Availability in chrome leather, cotton canvas, seamless knitted,
asbestos, and heat resistance.size available from 9 inches to 18
inches
Handsleeves
Used for safety
Available in chrome leather, size 16” inches, 18’’ inches and 20
‘’.
Holder (Arc welding holder)
Make – ADOR , Sparkweld, Arcweld, Weldowin, Million, and
Welspring universal.
Used for holding the welding electrode while welding
Available in fully insulated and semi insulated, brass body from
300 amps to 700 amps.
Handscreen (without
glass)
Make sparkweld
Used for protection against arc welding
Available in black fibre glass, with both side finish superior
quality
Welding
Gauge
used for measuring
welding length
Available in cam type and fillet type welding gauge cam type
measures fillet leg length & weld throat size fille type
measures 11 fillet weld sizes for concave & convex welds
Headscreen Spare
Belt
Make Sparkweld,
Welspring universal original fibre adjustable belt W/u
make pust turn type gear belt
Thermopens
(Temperature indicating crayons)
used for measuring surface temperature
available from 50 to 1200 degree celsius options.
Welding Inspection
mirror
Make Welspring universal
Leg
Guard
Used for leg protection against welding
Available in chrome leather from 14 inches size to 18 inch
size.
Spot Welding
Electrode
Spot welding is a process in which contacting metal surfaces are
joined by the heat obtained from resistance to electric current
flow. available in flat and radius nose type size 16mm x 2’’
length
Purging Paper / back purging tape
Purging Paper or Water Soluble Paper is made of Sodium Carboxy Methyl Cellulose and wooden pulp that dissolves rapidly and completely in most liquids including water
